Typical Concrete Footing Section and Reinforcement Notes

Materials

Concrete Reinforced Concrete

Elements

Walls Foundations / Footings Anchors / Embeds Reinforcing

Connections

Base Plate / Anchorage Bolted Connection

About this detail

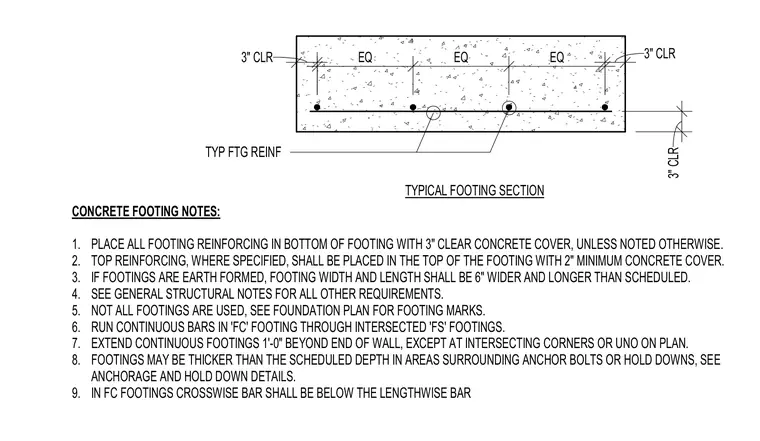

A typical concrete footing section incorporates specific reinforcement placement rules and notes. All footing reinforcing is placed in the bottom of the footing with three inches of clear concrete cover unless noted otherwise. Top reinforcing, where specified, requires a two-inch minimum concrete cover. Earth-formed footings must be six inches wider and longer than scheduled. Continuous bars in continuous footings run through intersected spread footings and extend one foot beyond the end of the wall. In continuous footings, the crosswise bar is positioned below the lengthwise bar.
