Embedded bolts consisting of A307 or F1554 Grade 36 minimum steel are anchored into concrete with a minimum compressive strength of 2,500 PSI. An attachment with a thickness determined per drawings bears against the face of the concrete and is secured by the embedded bolt. Dimensions detail the minimum concrete thickness, bolt embedment depth, minimum edge distance, and minimum bolt spacing for anchor locations not specifically detailed elsewhere.

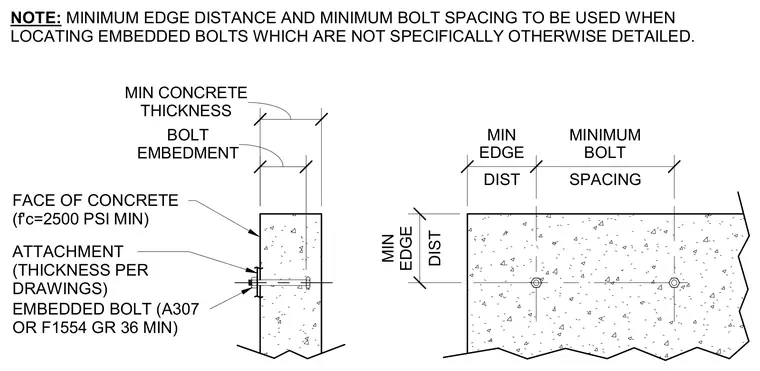

NOTE: MINIMUM EDGE DISTANCE AND MINIMUM BOLT SPACING TO BE USED WHEN LOCATING EMBEDDED BOLTS WHICH ARE NOT SPECIFICALLY OTHERWISE DETAILED. DIST MIN EDGE SPACING MINIMUM BOLT DIST MIN EDGE BOLT EMBEDMENT MIN CONCRETE THICKNESS FACE OF CONCRETE (f'c=2500 PSI MIN) ATTACHMENT (THICKNESS PER DRAWINGS) EMBEDDED BOLT (A307 OR F1554 GR 36 MIN)
