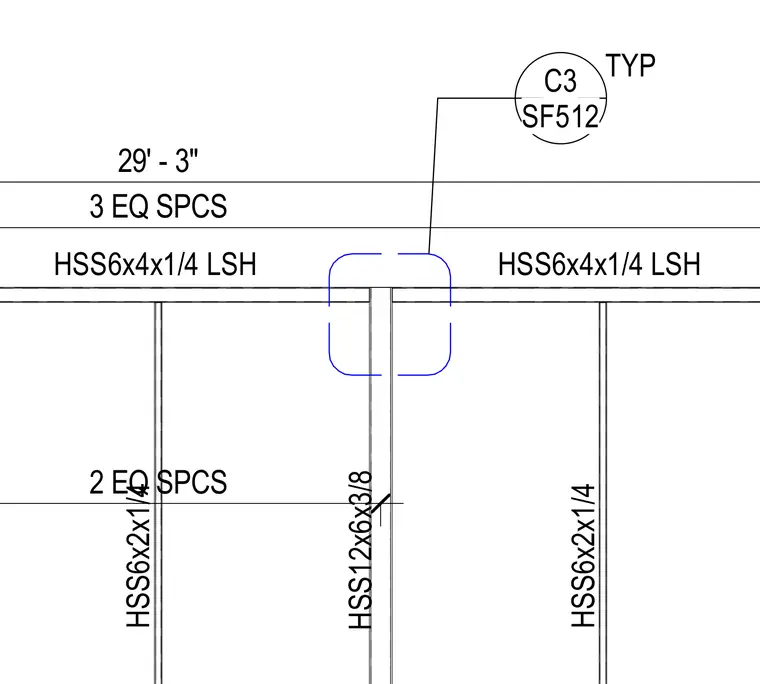

This structural framing assembly features a central vertical hollow structural section column of HSS12x6x3/8 with intersecting horizontal HSS6x4x1/4 members and vertical HSS6x2x1/4 members typically spaced in equal intervals. The layout includes dimensioned spacing notes and a reference callout bubble designated C3 SF512 TYP.
HSS12x6x3/8 HSS6x2x1/4 HSS6x2x1/4 29' - 3" 2 EQ SPCS 3 EQ SPCS SF512 C3 TYP HSS6x4x1/4 LSH HSS6x4x1/4 LSH
