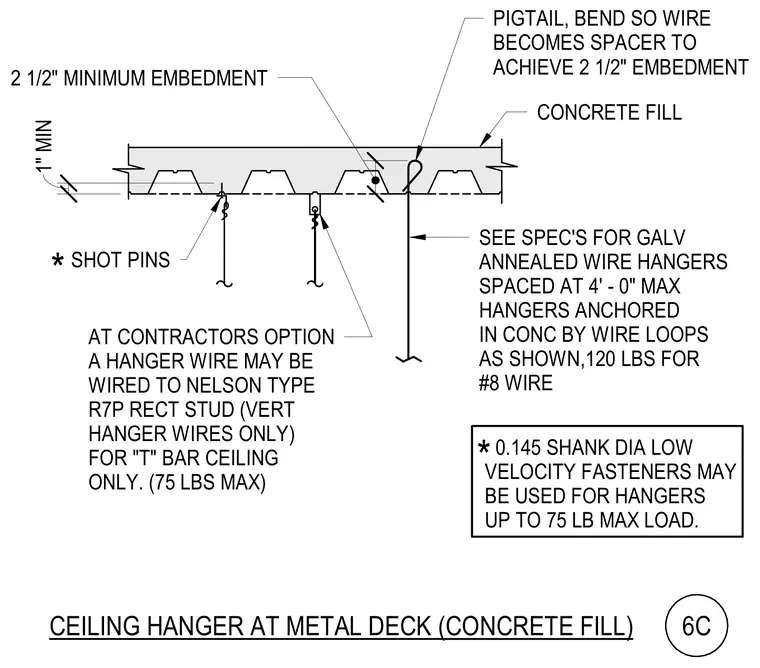

Suspended ceiling hanger anchored into a concrete-filled metal deck utilizing galvanized annealed wire hangers spaced at a maximum of four feet on center. The wire hanger is embedded into the concrete fill with a minimum embedment of two and one-half inches, featuring a pigtail bend to act as a spacer. Hangers anchored by wire loops support up to one hundred twenty pounds for number eight wire. Alternatively, at the contractor's option, a hanger wire may be wired to a Nelson type R7P rectangular stud for vertical hanger wires limited to seventy-five pounds maximum load on T-bar ceilings only. Low-velocity fasteners with a zero point one hundred forty-five shank diameter shot pins may also be used for hangers up to a seventy-five pound maximum load.
CEILING HANGER AT METAL DECK (CONCRETE FILL) 2 1/2" MINIMUM EMBEDMENT SHOT PINS PIGTAIL, BEND SO WIRE BECOMES SPACER TO ACHIEVE 2 1/2" EMBEDMENT SEE SPEC'S FOR GALV ANNEALED WIRE HANGERS SPACED AT 4' - 0" MAX HANGERS ANCHORED IN CONC BY WIRE LOOPS AS SHOWN,120 LBS FOR #8 WIRE AT CONTRACTORS OPTION A HANGER WIRE MAY BE WIRED TO NELSON TYPE R7P RECT STUD (VERT HANGER WIRES ONLY) FOR "T" BAR CEILING ONLY. (75 LBS MAX) CONCRETE FILL 0.145 SHANK DIA LOW VELOCITY FASTENERS MAY BE USED FOR HANGERS UP TO 75 LB MAX LOAD. * * 1" MIN 6C
