Structural · S-RZ4BN

Beam and Column Connection with Continuity Plates and WT Bracket

Materials

Connections

About this detail

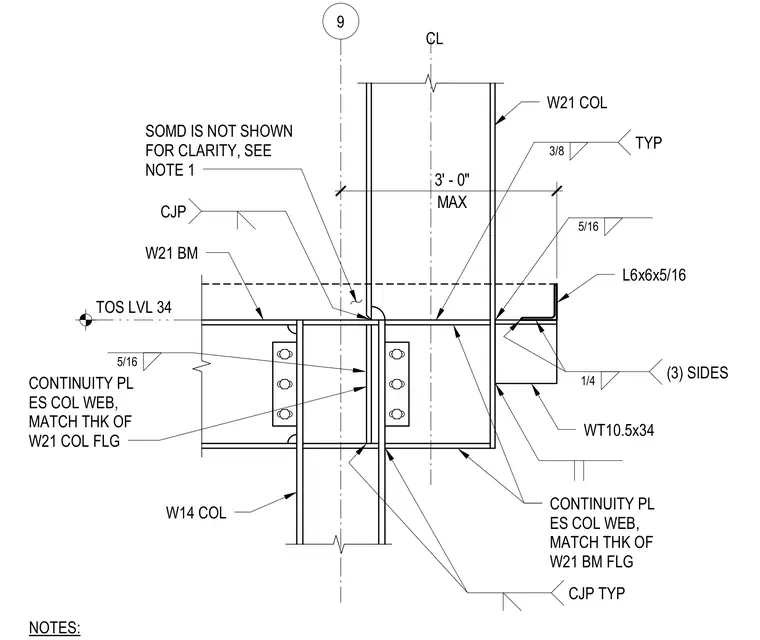

A W21 beam frames into a W14 column with continuity plates matching the flange and web thicknesses of the connected members. Complete joint penetration welds secure the continuity plates to the column web, while five-sixteenth-inch fillet welds attach additional plates. A WT10.5x34 bracket connects adjacent framing with quarter-inch welds on three sides, supplemented by an L6x6x5/16 angle. A maximum distance of three feet is noted, and secondary structural elements are omitted for clarity per notes.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
