Structural · S-RZ3XH

Beam To Beam Connection (Two Sided Connection)

Materials

Steel

Elements

Beams Connections / Plates

Connections

Shear Tab / Single Plate Beam-to-Beam Welded Connection Bolted Connection

About this detail

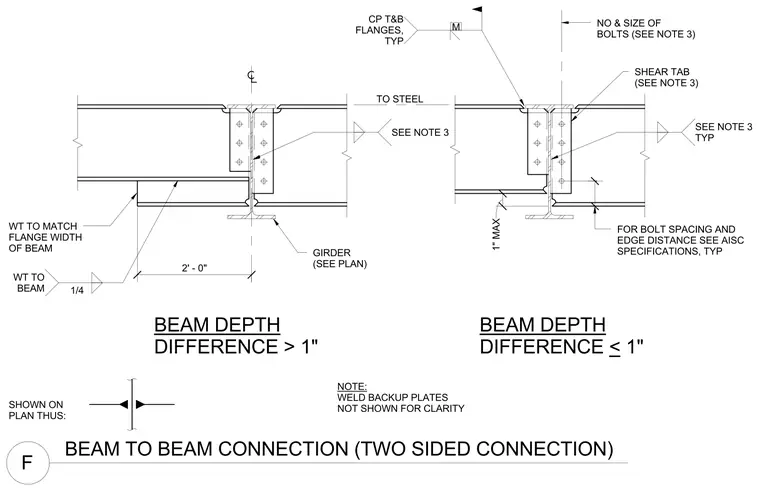

Two secondary framing beams connect to a central supporting girder from both sides using shop-welded shear tabs bolted to the beam webs. When the beam depth difference exceeds one inch, a WT section matches the flange width of the beam and is welded to the underside with a quarter-inch fillet weld extending two feet out. When the depth difference is one inch or less, top and bottom flanges are connected directly with complete joint penetration welds, leaving a maximum one-inch clearance. Bolt size, spacing, and edge distances conform to AISC specifications. Backup plates are omitted from the drawing views for clarity.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
