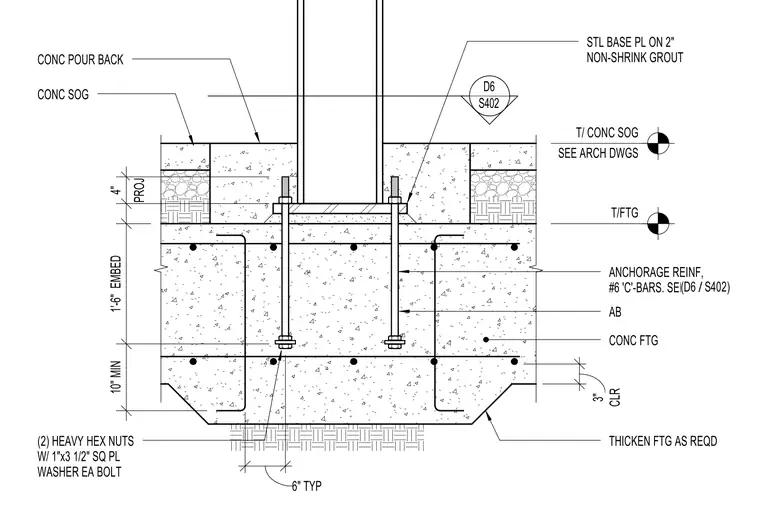

A steel column transfers loads through a steel base plate set on two inches of non-shrink grout over a reinforced concrete footing. Anchor bolts extend one foot six inches into the concrete footing with a ten inch minimum projection and feature two heavy hex nuts with one-inch by three-and-a-half-inch square plate washers on each bolt. Anchorage reinforcement includes number six C-bars placed within the thickened footing. A concrete slab-on-grade abuts the column base with a concrete pour back.
CONC FTG (2) HEAVY HEX NUTS W/ 1"x3 1/2" SQ PL WASHER EA BOLT CONC SOG CONC POUR BACK T/ CONC SOG SEE ARCH DWGS T/FTG AB STL BASE PL ON 2" NON-SHRINK GROUT 1'-6" EMBED 10" MIN PROJ 4" D6 S402 CLR 3" 6" TYP ANCHORAGE REINF, #6 'C'-BARS. SEE / (D6 S402) THICKEN FTG AS REQD
