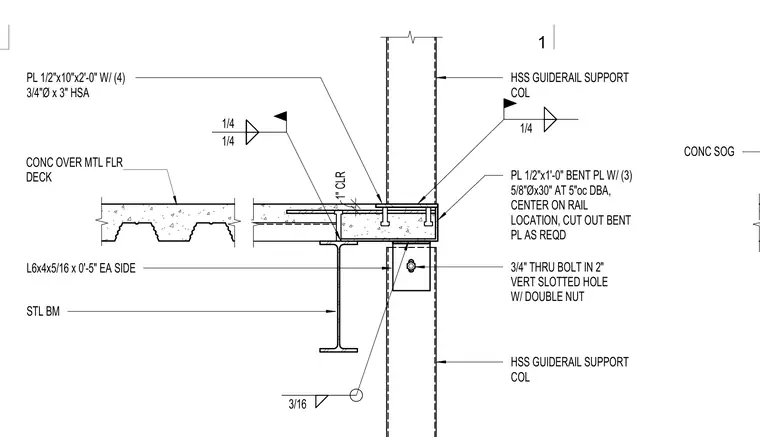

An HSS guiderail support column bears against a concrete slab over a metal floor deck and structural steel beam. A half-inch by ten-inch by two-foot base plate secures the column with four three-quarter-inch diameter by three-inch heavy stud anchors, while a half-inch by one-foot bent plate with three five-eighths-inch diameter by thirty-inch deformed bar anchors at five inches on center centers on the rail location with cutouts as required. A five-sixteenths fillet weld connects the assembly at the steel beam bearing. A six-by-four by five-sixteenths angle measuring five inches long on each side connects to the structural steel beam using a three-quarter-inch through bolt in a two-inch vertical slotted hole with a double nut. A one-inch clearance is maintained between the slab edge and the structural element.
L6x4x5/16 x 0'-5" EA SIDE HSS GUIDERAIL SUPPORT COL STL BM 3/4" THRU BOLT IN 2" VERT SLOTTED HOLE W/ DOUBLE NUT HSS GUIDERAIL SUPPORT COL PL 1/2"x10"x2'-0" W/ (4) 3/4"Ø x 3" HSA PL 1/2"x1'-0" BENT PL W/ (3) 5/8"Øx30" AT 5"oc DBA, CENTER ON RAIL LOCATION, CUT OUT BENT PL AS REQD CONC OVER MTL FLR DECK 3/16 1/4 1/4 1/4 1" CLR CONC SOG 1
