Beam to Perimeter Beam Shear Tab Connection

Materials

Steel

Elements

Beams

Connections

Shear Tab / Single Plate Bolted Connection Expansion / Slip Connection

About this detail

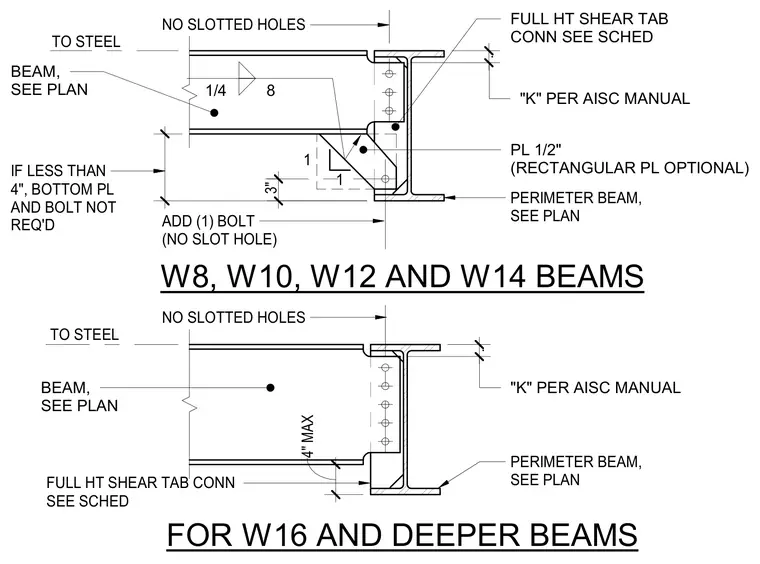

A structural steel connection between an interior beam and a perimeter beam uses a full-height shear tab. The supporting perimeter beam receives the incoming beam web through a bolted connection with unslotted holes. A 1/2-inch thick rectangular plate option is provided at the bottom flange with an additional bolt when clearance permits. Weld sizes and AISC manual requirements govern the connection geometry.
