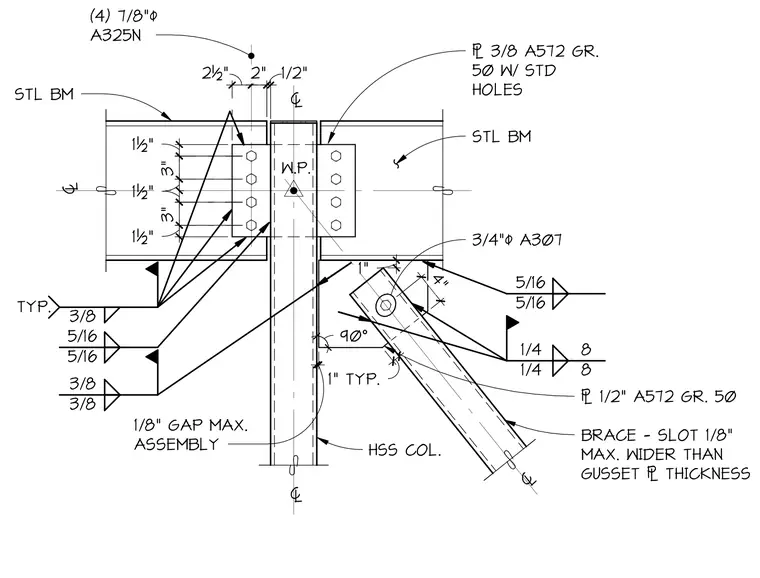

This structural steel connection details a hollow structural section column supporting steel beams with a diagonal brace. A 3/8-inch thick ASTM A572 Grade 50 plate with standard holes connects the steel beams using four 7/8-inch diameter A325N high-strength bolts on each side. A 1/2-inch thick ASTM A572 Grade 50 gusset plate is welded to the column and connects to the diagonal brace slotted for the gusset thickness. Fillet welds of 5/16-inch and 1/4-inch sizes secure the gusset plate and framing elements as indicated by standard welding symbols. A 3/4-inch diameter A307 bolt ties the brace to the gusset plate assembly with specified clearances and a maximum 1/8-inch assembly gap.
4" 1" 5/16 5/16 1/4 8 1/4 8 1" TYP. 90° 90° STL BM BRACE - SLOT 1/8" MAX. WIDER THAN GUSSET ' THICKNESS ' 1/2" A572 GR. 50 HSS COL. 5/16 5/16 3/8 TYP. ' 3/8 A572 GR. 50 W/ STD HOLES * * 3" 3" 1½" 1½" 1½" 2½" 2" * STL BM (4) 7/8". A325N 1/2" 3/8 3/8 3/4". A307 W.P. 1/8" GAP MAX. ASSEMBLY *
