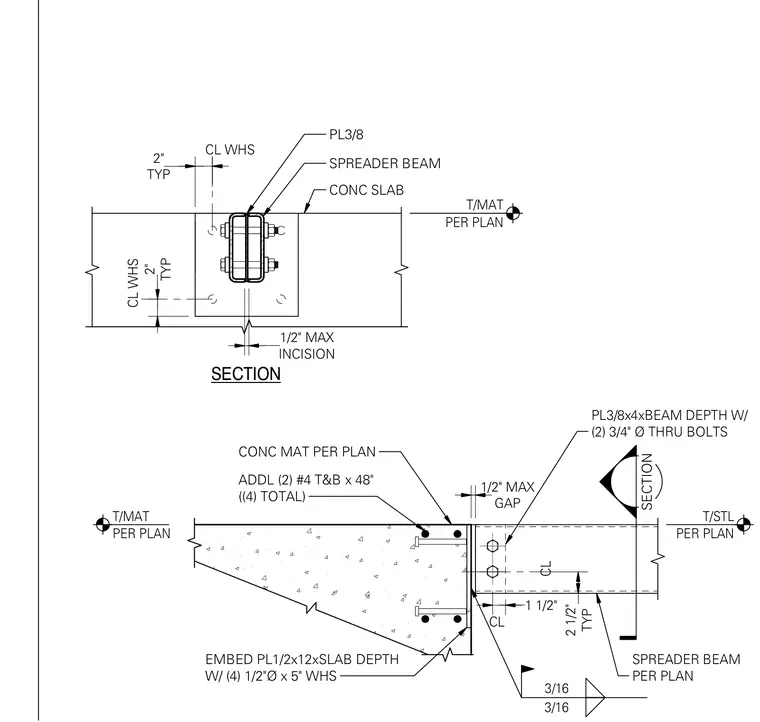

A spreader beam connects to a concrete slab edge using an embed plate and paired side plates. The embed plate measures 1/2 inch by 12 inches by the slab depth and includes four 1/2-inch diameter by 5-inch welded headed studs. The spreader beam aligns with two 3/8-inch by 4-inch side plates spanning the beam depth, fastened by two 3/4-inch diameter through bolts. Additional reinforcement consists of two number 4 top and bottom bars measuring 48 inches in length. A 1/2-inch maximum gap and 1/2-inch maximum incision are maintained at the concrete face per plan specifications.
T/MAT PER PLAN T/STL PER PLAN T/MAT PER PLAN 1 1/2" 3/16 3/16 EMBED PL1/2x12xSLAB DEPTH W/ (4) 1/2"Ø x 5" WHS ADDL (2) #4 T&B x 48" ((4) TOTAL) SECTION TYP 2" CONC SLAB CONC MAT PER PLAN CL WHS CL WHS TYP 2" SPREADER BEAM PL3/8 INCISION 1/2" MAX GAP 1/2" MAX PL3/8x4xBEAM DEPTH W/ (2) 3/4" Ø THRU BOLTS SPREADER BEAM PER PLAN CL SECTION TYP 2 1/2" CL
