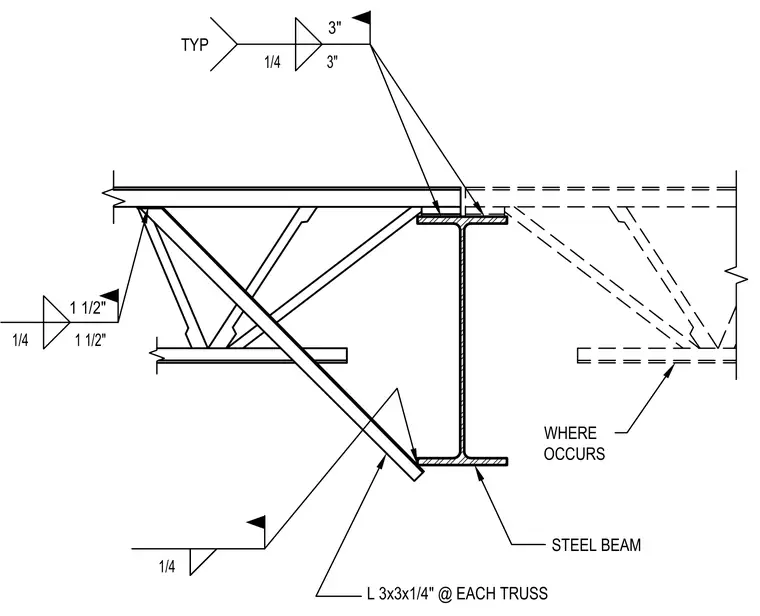

Steel trusses bear on a supporting steel beam with 3x3x1/4-inch angles at each truss. Connections are detailed with 1/4-inch fillet welds of varying lengths including 3-inch and 1 1/2-inch segments typical at the intersecting members.
L 3x3x1/4" @ EACH TRUSS STEEL BEAM WHERE OCCURS 1/4 3" 3" TYP 1/4 1/4 1 1/2" 1 1/2"
