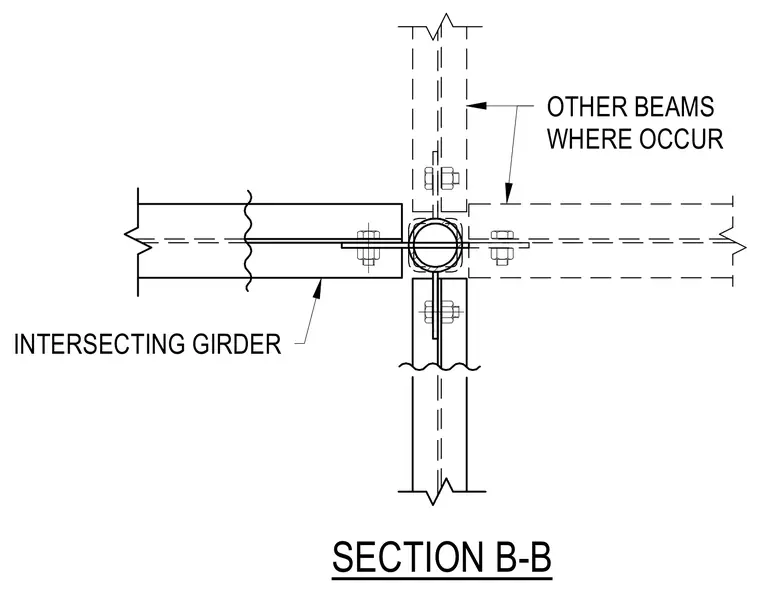

An intersecting structural steel girder frames into a square or rectangular shape column utilizing bolted shear tab connections. Additional intersecting beams connect to the column flanges and web where required by the framing layout. Bolts secure the web connection plates to the framing members.
