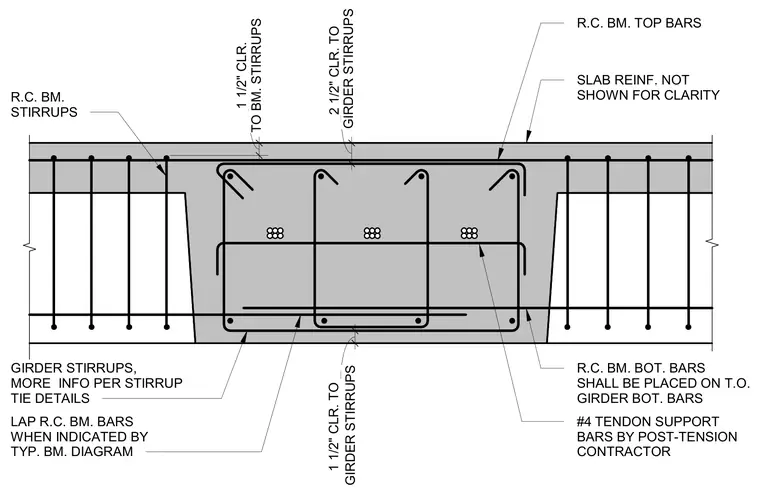

Reinforced concrete beam bottom bars are placed directly on top of the girder bottom bars. Number four tendon support bars are provided by the post-tension contractor. Reinforced concrete beam stirrups maintain a one and one-half inch clearance to beam stirrups. Girder stirrups maintain a two and one-half inch clearance to girder stirrups and a one and one-half inch clearance to girder stirrups at the bottom. Slab reinforcement is omitted for clarity. Reinforced concrete beam bars are lapped when indicated by the typical beam diagram.
TO BM. STIRRUPS 1 1/2" CLR. GIRDER STIRRUPS 2 1/2" CLR. TO GIRDER STIRRUPS 1 1/2" CLR. TO R.C. BM. TOP BARS R.C. BM. STIRRUPS SLAB REINF. NOT SHOWN FOR CLARITY R.C. BM. BOT. BARS SHALL BE PLACED ON T.O. GIRDER BOT. BARS #4 TENDON SUPPORT BARS BY POST-TENSION CONTRACTOR LAP R.C. BM. BARS WHEN INDICATED BY TYP. BM. DIAGRAM GIRDER STIRRUPS, MORE INFO PER STIRRUP TIE DETAILS
