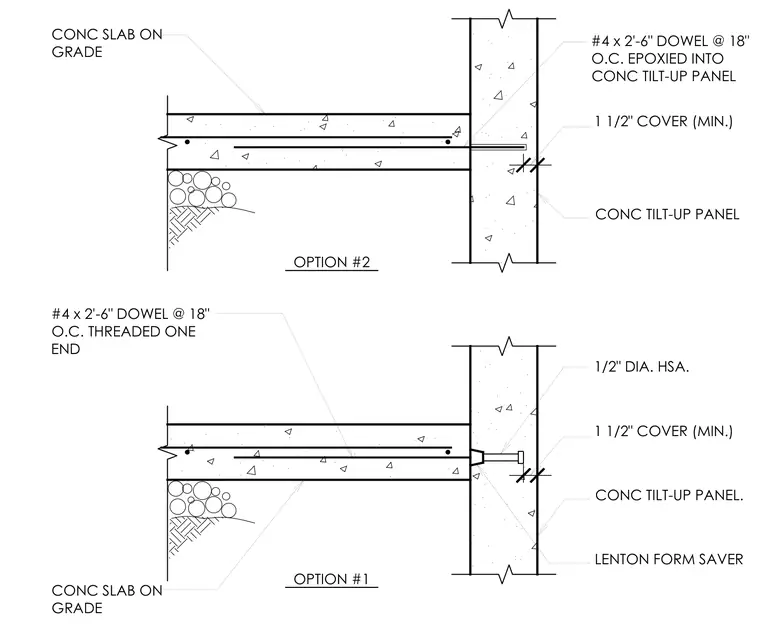

A concrete slab on grade connects to a concrete tilt-up wall panel utilizing two alternative dowel anchoring methods. Option one features a number four by two-foot six-inch dowel threaded on one end, paired with a Lenton Form Saver and a one-half-inch diameter HSA anchor. Option two utilizes a number four by two-foot six-inch dowel epoxied directly into the concrete tilt-up panel at eighteen inches on center. Both options maintain a one-and-one-half-inch minimum concrete cover.
1 1/2" COVER (MIN.) OPTION #2 OPTION #1 CONC SLAB ON GRADE CONC SLAB ON GRADE #4 x 2'-6" DOWEL @ 18" O.C. THREADED ONE END LENTON FORM SAVER CONC TILT-UP PANEL CONC TILT-UP PANEL. 1/2" DIA. HSA. #4 x 2'-6" DOWEL @ 18" O.C. EPOXIED INTO CONC TILT-UP PANEL 1 1/2" COVER (MIN.)
