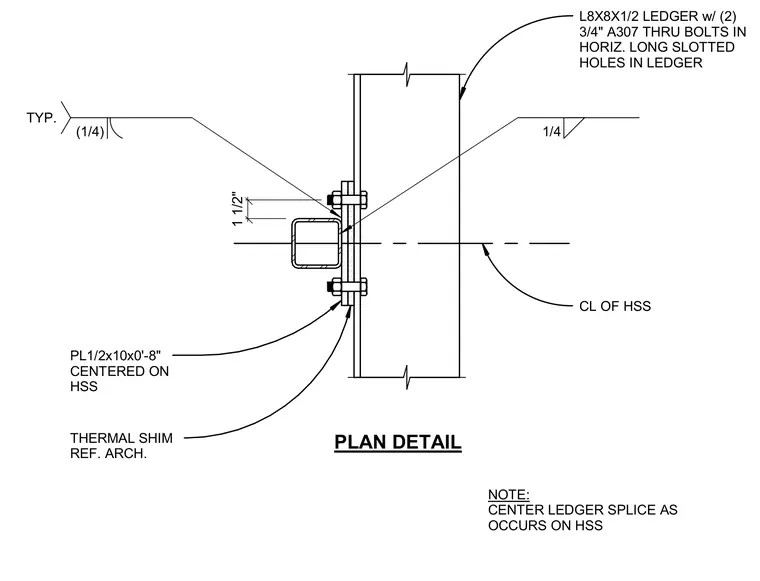

An L8x8x1/2 structural steel ledger connects to a hollow structural section column using two three-quarter-inch A307 through bolts located within horizontal long slotted holes in the ledger. A half-inch by ten-inch by zero-foot-eight-inch plate is centered on the hollow structural section, with a thermal shim referenced from the architectural drawings placed between the components. Fillet welds of one-quarter-inch size are applied typically as indicated on the drawing. The center ledger splice assembly occurs directly on the hollow structural section column.
(1/4) TYP. 1/4 1 1/2" CL OF HSS PLAN DETAIL THERMAL SHIM REF. ARCH. PL1/2x10x0'-8" CENTERED ON HSS L8X8X1/2 LEDGER w/ (2) 3/4" A307 THRU BOLTS IN HORIZ. LONG SLOTTED HOLES IN LEDGER NOTE: CENTER LEDGER SPLICE AS OCCURS ON HSS
