Structural · S-RXT2R

Wall Vertical Reinforcing

Materials

Concrete Reinforced Concrete Masonry / CMU

Elements

Walls Floors / Slabs Foundations / Footings Arches Anchors / Embeds Reinforcing

Connections

Rebar Splice / Development

About this detail

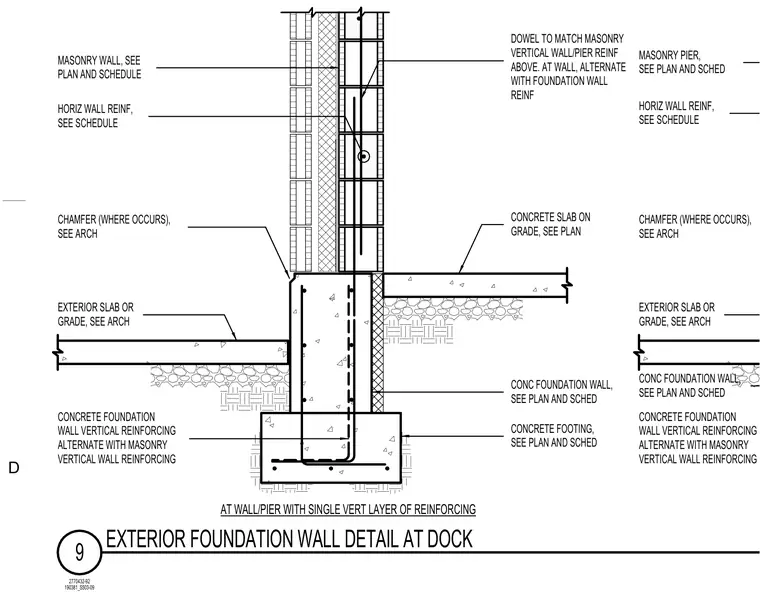

An exterior foundation wall supports a masonry wall at a loading dock. The assembly features a concrete foundation wall and concrete footing sized per plan and schedule, tied with vertical and horizontal reinforcing steel. A concrete slab on grade and exterior slab or grade abut the foundation wall, with chamfers occurring as indicated by architectural drawings. Dowels match the masonry vertical wall and pier reinforcement above, alternating with the foundation wall vertical reinforcing where single vertical layers of reinforcing occur.
