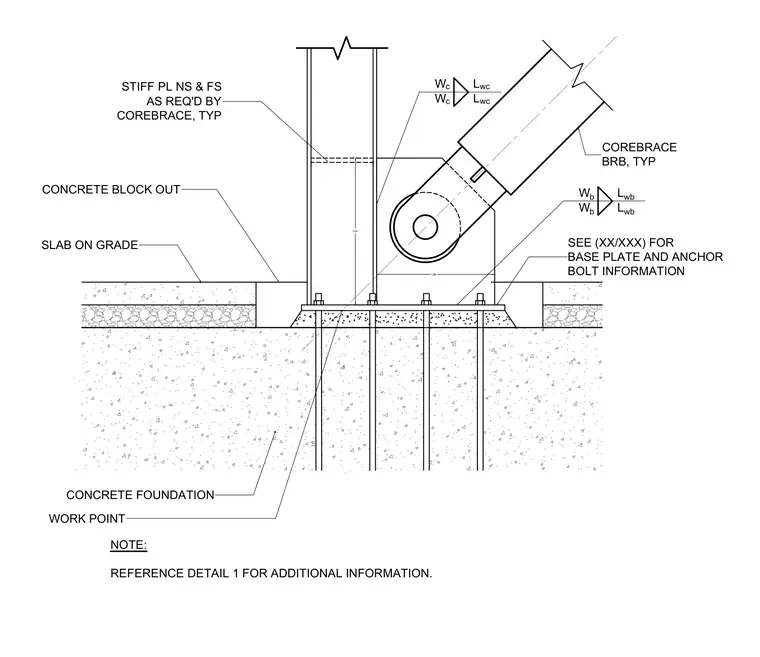

A CoreBrace buckling-restrained brace connects via a pin plate to a structural steel column and gusset assembly anchored at a concrete foundation. Stiffener plates are provided near side and far side as required by the manufacturer. The column and gusset bear upon a base plate anchored by multiple anchor bolts extending into the concrete footing, with base plate and anchor bolt information referenced on a separate sheet. A concrete blockout surrounds the base at the slab on grade.
Lgc Lgb NOTE: REFERENCE DETAIL 1 FOR ADDITIONAL INFORMATION. W b W b L wb L wb SEE (XX/XXX) FOR BASE PLATE AND ANCHOR BOLT INFORMATION W c W c L wc L wc CONCRETE BLOCK OUT SLAB ON GRADE WORK POINT CONCRETE FOUNDATION STIFF PL NS & FS AS REQ'D BY COREBRACE, TYP COREBRACE BRB, TYP
