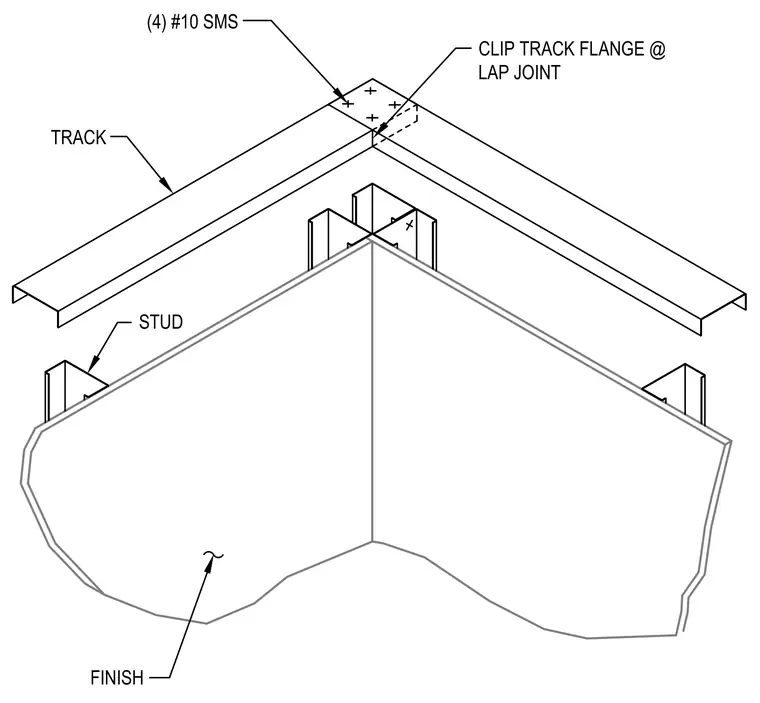

Cold-formed metal stud framing at a building corner with intersecting tracks and vertical studs. The top track features a lap joint secured with four number ten sheet metal screws through the clip track flange. Interior finish material is applied to the framing.
