Structural · S-RXJB9

Cantilevered Beam Connection at Column

Materials

Concrete Metal (misc.)

Elements

Columns Beams Roofs Decks Connections / Plates

Connections

Welded Connection Bolted Connection

About this detail

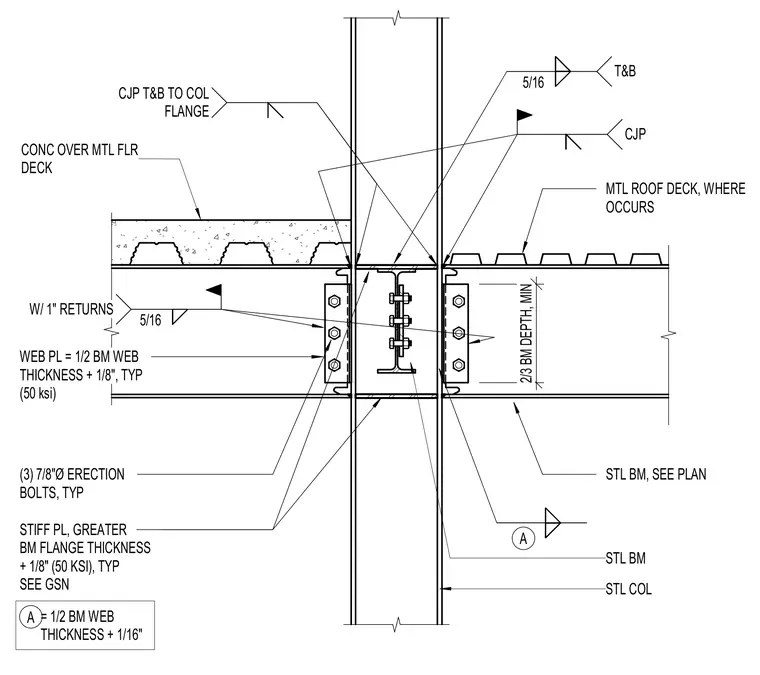

This structural detail shows a cantilevered steel beam connected to a steel column. The steel beam frames into the column flange, utilizing complete joint penetration welds at the top and bottom flanges. A web plate measuring half the beam web thickness plus one-eighth of an inch at 50 ksi is welded with five-sixteenth-inch fillet welds featuring one-inch returns. Three seven-eighth-inch diameter erection bolts secure the web connection. Stiffener plates sized to the greater beam flange thickness plus one-eighth of an inch at 50 ksi are welded adjacent to the flange. Concrete over metal floor deck bears on the top flange on one side, and metal roof deck occurs on the opposite side.
