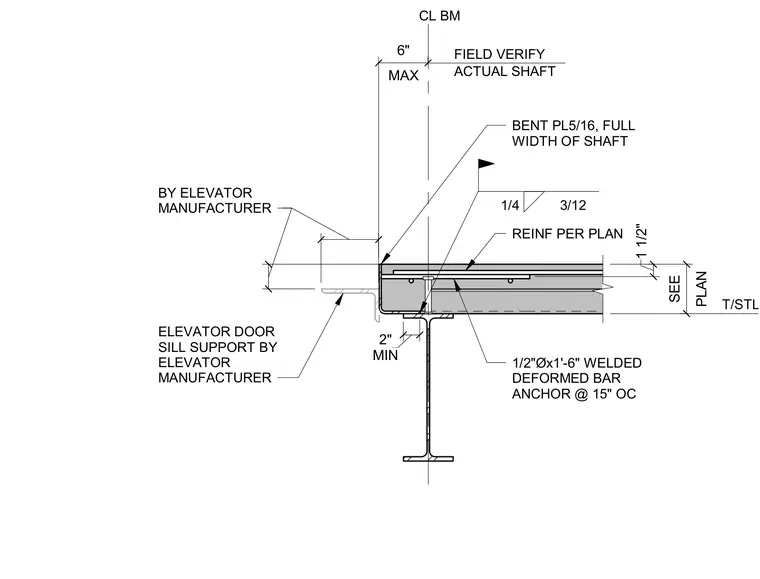

A bent five-sixteenth-inch plate spans the full width of the elevator shaft along the slab edge, anchored by half-inch diameter by one-foot-six-inch welded deformed bar anchors spaced at fifteen inches on center. The concrete slab is reinforced per plan, bearing on a structural steel beam with the elevator door sill support coordinated and provided by the elevator manufacturer.
FIELD VERIFY ACTUAL SHAFT BY ELEVATOR MANUFACTURER ELEVATOR DOOR SILL SUPPORT BY ELEVATOR MANUFACTURER 1/2"Øx1'-6" WELDED DEFORMED BAR ANCHOR @ 15" OC BENT PL5/16, FULL WIDTH OF SHAFT REINF PER PLAN 1/4 3/12 CL BM PLAN SEE 1 1/2" MAX 6" MIN 2"
