Structural · S-RX7T6

High Roof Steel Beam to Column Flange Connection

Materials

Concrete Steel Timber / Wood

Elements

Columns Walls Roofs Floors / Slabs Insulation Connections / Plates

Connections

Timber / Mass-Timber Connection

About this detail

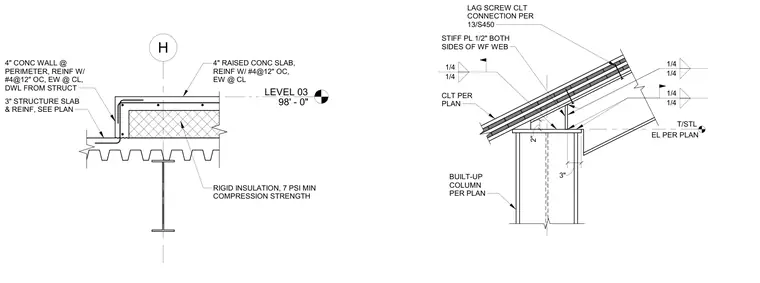

The high roof assembly features cross-laminated timber panels supported by a built-up steel column and wide-flange beam connection. A half-inch stiffener plate is welded to both sides of the wide-flange web with fillet welds. Lag screw cross-laminated timber connections secure the roof panels according to structural specifications. A separate perimeter detail shows a four-inch raised concrete slab over rigid insulation, reinforced with number four bars at twelve inches on center each way. This slab is cast over a three-inch structural concrete slab and metal deck with perimeter concrete walls and dowels tied from the structure.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
