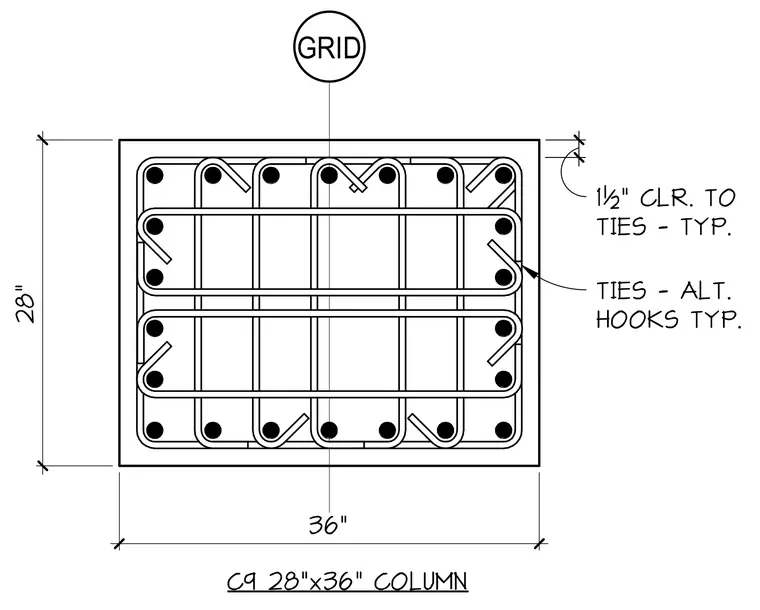

The rectangular concrete column measures twenty-eight inches by thirty-six inches and is centered on the structural grid. Longitudinal reinforcing bars are distributed around the perimeter of the cross-section with transverse ties featuring alternating hooks. A standard one-and-one-half-inch clear cover is maintained to the ties.
1½" CLR. TO TIES - TYP. GRID 1 1/2" C9 28"x36" COLUMN 28" 36" TIES - ALT. HOOKS TYP.
