Structural · S-RWXA6

Single Span Post-Tension Beam

Elements

Connections

About this detail

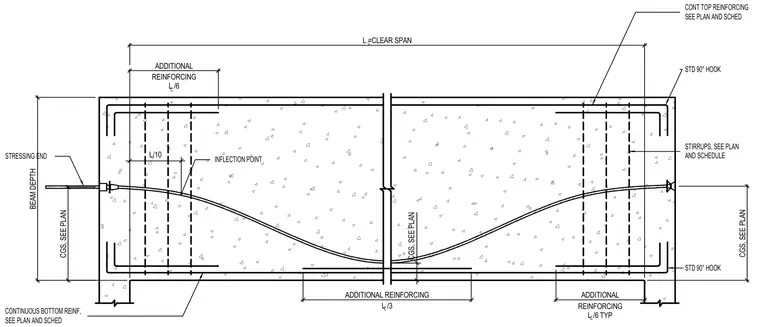

A single span post-tensioned concrete beam elevation features the parabolic tendon profile, center of gravity of steel dimensions, and stressing end anchorages. Continuous top and bottom reinforcing bars extend through the span with standard 90-degree hooks at supports. Additional top reinforcement extends one-sixth of the clear span from supports, and additional bottom reinforcement extends through the middle third of the span. Transverse stirrups are spaced throughout the beam length per the structural plans and schedule.
