A structural concrete column intersects concrete beams at elevation 89'-0" with a stepped beam transition to elevation 80'-0". A recessed base plate sits within a block-out at the top of the column. Column reinforcement consists of vertical bars and #6 stirrups spaced at 8 inches on center. The concrete compressive strength follows the general notes.

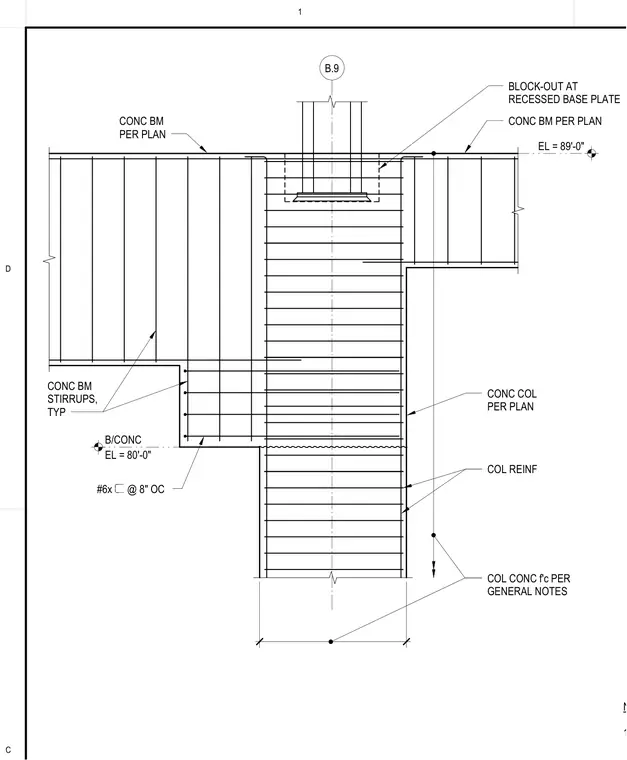

B.9 EL = 89'-0" CONC BM PER PLAN EL = 80'-0" B/CONC CONC BM PER PLAN CONC COL PER PLAN COL REINF CONC BM STIRRUPS, TYP #6x @ 8" OC BLOCK-OUT AT RECESSED BASE PLATE COL CONC f'c PER GENERAL NOTES NOTES: 1. 1 C D
