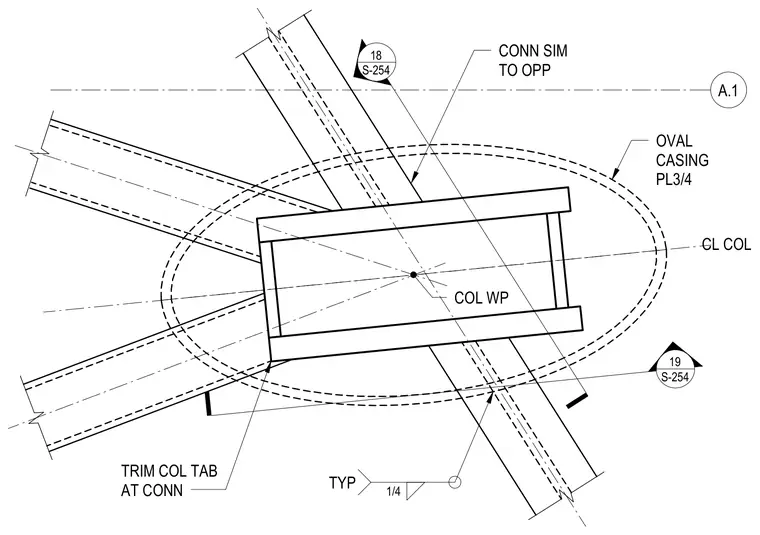

An oval casing plate measuring three-quarters of an inch thick is positioned around the column center line and work point. Trim column tabs are installed at the connection, with typical quarter-inch fillet welds joining the structural members. The opposite side connection is similar.
A.1 18 S-254 19 S-254 COL WP CL COL OVAL CASING PL3/4 TRIM COL TAB AT CONN TYP 1/4 CONN SIM TO OPP
