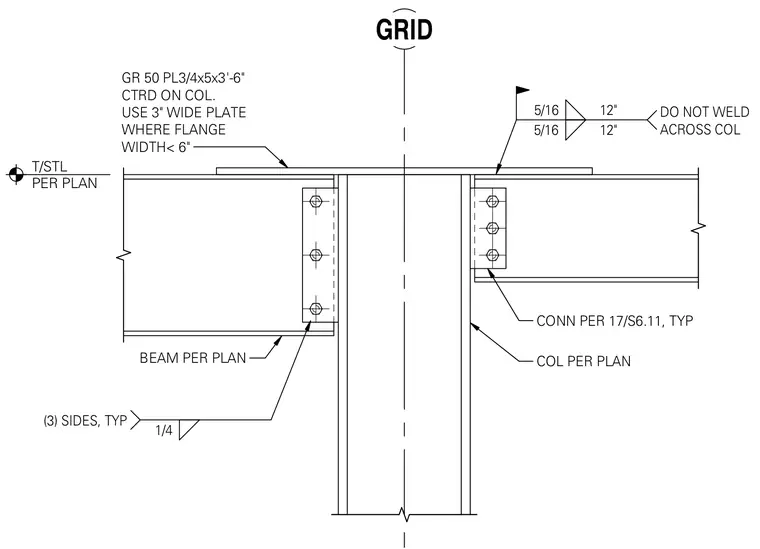

Steel beams frame into opposite sides of a structural column with a continuous top drag plate centered on the column. The Grade 50 plate measures three-quarters of an inch thick by five inches wide by three feet six inches long, with a three-inch wide plate used where the flange width is less than six inches. A five-sixteenths inch fillet weld is specified along the plate, left unwelded across the column. The beams connect to the column flange using standard shear tabs welded on three sides with a quarter-inch fillet weld and bolted with three bolts per connection.
GRID 5/16 12" 5/16 12" DO NOT WELD ACROSS COL CONN PER 17/S6.11, TYP COL PER PLAN GR 50 PL3/4x5x3'-6" CTRD ON COL. USE 3" WIDE PLATE WHERE FLANGE WIDTH< 6" T/STL PER PLAN BEAM PER PLAN 1/4 (3) SIDES, TYP
