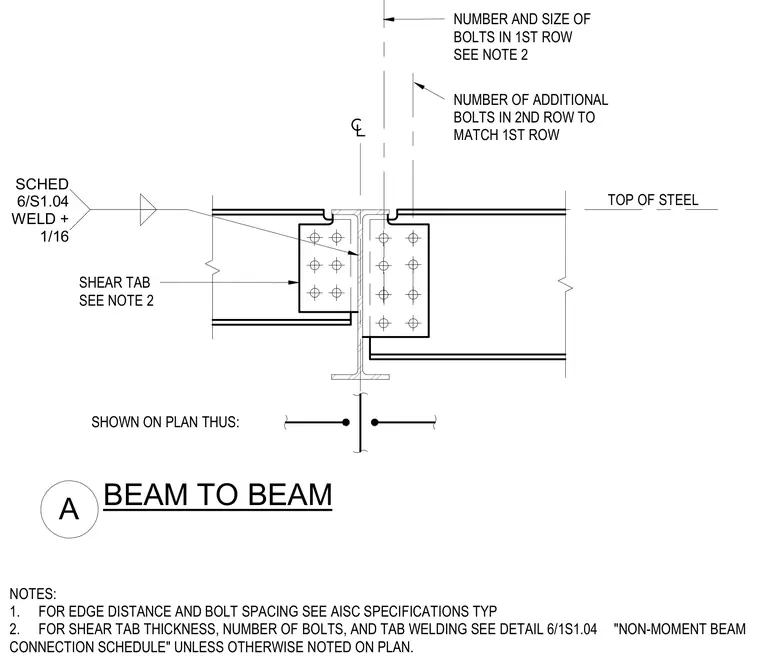

A supported steel beam frames into the web of a supporting steel beam using a single-plate shear tab connection. The shear tab is welded to the supporting beam web with a fillet weld sized per the connection schedule, and the supported beam web attaches to the tab with multiple rows of high-strength bolts. Edge distances and bolt spacings conform to American Institute of Steel Construction specifications. The number and size of bolts in the first and second rows are sized per the structural schedule unless otherwise noted on the plan.
NOTES: 1. FOR EDGE DISTANCE AND BOLT SPACING SEE AISC SPECIFICATIONS TYP 2. FOR SHEAR TAB THICKNESS, NUMBER OF BOLTS, AND TAB WELDING SEE DETAIL 6/1S1.04 "NON-MOMENT BEAM CONNECTION SCHEDULE" UNLESS OTHERWISE NOTED ON PLAN. SHEAR TAB SEE NOTE 2 TOP OF STEEL NUMBER AND SIZE OF BOLTS IN 1ST ROW SEE NOTE 2 A BEAM TO BEAM SHOWN ON PLAN THUS: NUMBER OF ADDITIONAL BOLTS IN 2ND ROW TO MATCH 1ST ROW SCHED 6/S1.04 WELD + 1/16
