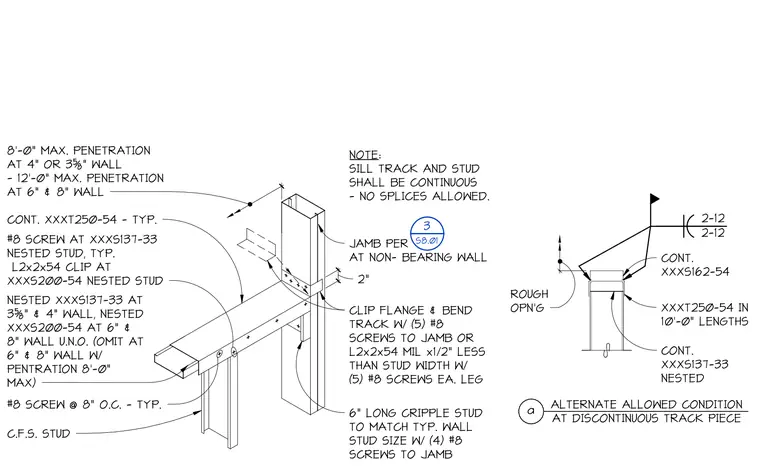

The assembly features a continuous cold-formed steel track and nested studs secured with number 8 screws at 8 inches on center. A two-inch by two-inch by 54-mil clip angle connects the nested stud to the track with five number 8 screws at each leg. A six-inch long cripple stud matches the typical wall stud size and attaches to the jamb with four number 8 screws. Sills and studs must remain continuous without splices, and nested member sizes vary depending on wall thickness.
2" 6" LONG CRIPPLE STUD TO MATCH TYP. WALL STUD SIZE W/ (4) #8 SCREWS TO JAMB CLIP FLANGE & BEND TRACK W/ (5) #8 SCREWS TO JAMB OR L2x2x54 MIL x1/2" LESS THAN STUD WIDTH W/ (5) #8 SCREWS EA. LEG JAMB PER AT NON- BEARING WALL NOTE: SILL TRACK AND STUD SHALL BE CONTINUOUS - NO SPLICES ALLOWED. 8'-0" MAX. PENETRATION AT 4" OR 35" WALL - 12'-0" MAX. PENETRATION AT 6" & 8" WALL CONT. XXXT250-54 - TYP. #8 SCREW AT XXXS137-33 NESTED STUD, TYP. L2x2x54 CLIP AT XXXS200-54 NESTED STUD NESTED XXXS137-33 AT 35" & 4" WALL, NESTED XXXS200-54 AT 6" & 8" WALL U.N.O. (OMIT AT 6" & 8" WALL W/ PENTRATION 8'-0" MAX) #8 SCREW @ 8" O.C. - TYP. C.F.S. STUD CONT. XXXS162-54 XXXT250-54 IN 10'-0" LENGTHS CONT. XXXS137-33 NESTED ROUGH OPN'G ALTERNATE ALLOWED CONDITION AT DISCONTINUOUS TRACK PIECE a 2-12 2-12 3 S8.01
