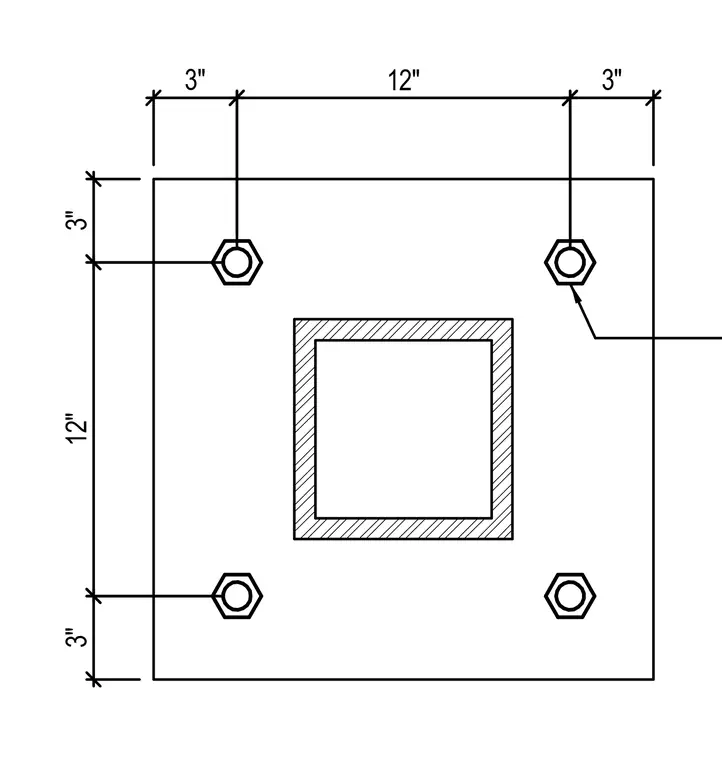

A square steel base plate supports a central hollow structural section column secured by four anchor bolts positioned at each corner. Dimensions space the anchor bolts twelve inches apart on center with three inch edge distances in both directions.
