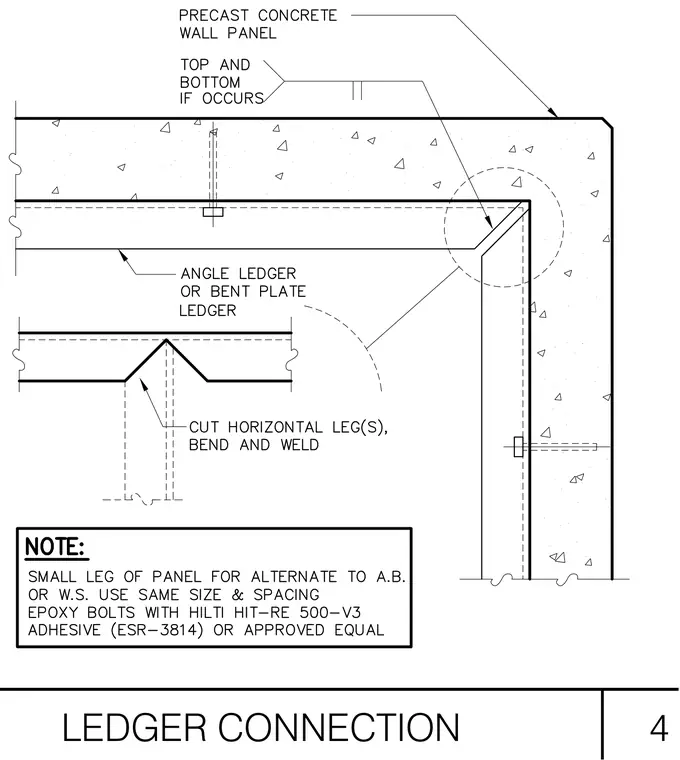

An angle ledger or bent plate ledger spans along precast concrete wall panels and fastens back to the concrete using epoxy bolts with Hilti HIT-RE 500-V3 adhesive or an approved equal. At corners, the horizontal leg of the angle ledger is cut, bent, and welded. Alternate anchor bolts or welded studs use the same size and spacing as specified.
