A continuous L4x4x1/4 angle runs along the slab edge to anchor the guardrail, which is detailed separately by the supplier. The concrete on metal deck bears on a structural steel beam sized per the structural plans and connection schedules. A one-quarter-inch fillet weld at two inches on center connects the continuous angle assembly.

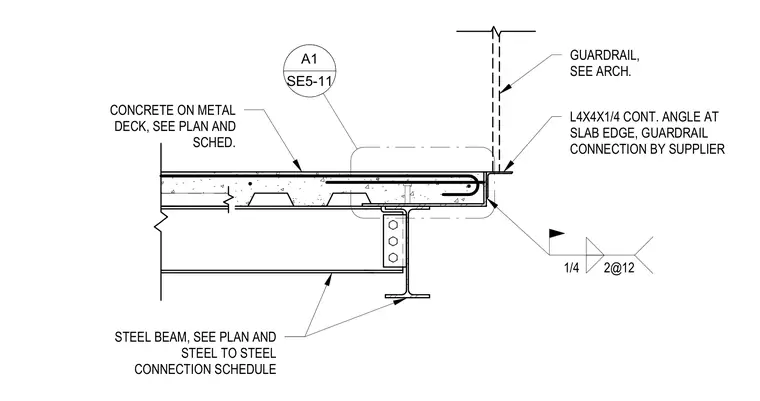

STEEL BEAM, SEE PLAN AND STEEL TO STEEL CONNECTION SCHEDULE SE5-11 A1 CONCRETE ON METAL DECK, SEE PLAN AND SCHED. GUARDRAIL, SEE ARCH. L4X4X1/4 CONT. ANGLE AT SLAB EDGE, GUARDRAIL CONNECTION BY SUPPLIER 1/4 2@12
