Conduits rest directly upon a horizontal trapeze channel support member suspended by threaded rods with rod stiffeners. Cable braces attach to the ends of the extended trapeze channel to provide lateral restraint, subject to a fifty pound maximum load limit.

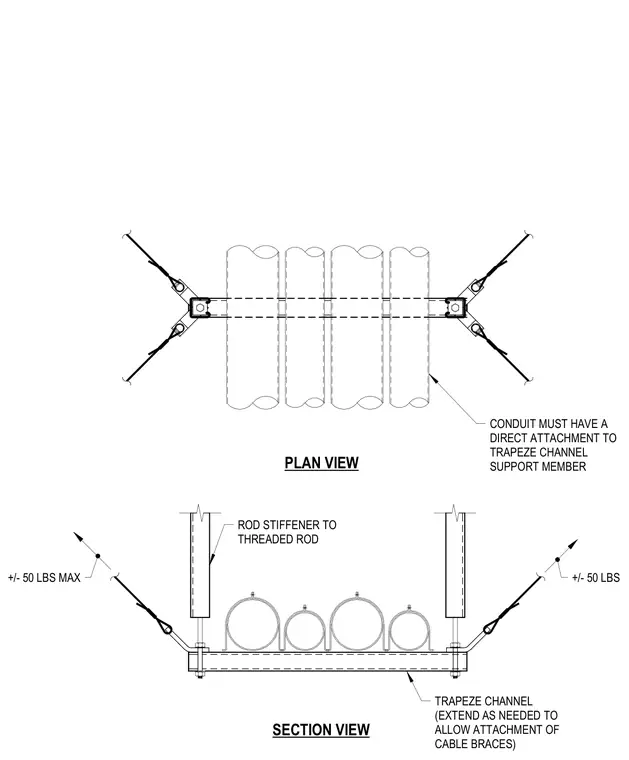

PLAN VIEW SECTION VIEW ROD STIFFENER TO THREADED ROD TRAPEZE CHANNEL (EXTEND AS NEEDED TO ALLOW ATTACHMENT OF CABLE BRACES) CONDUIT MUST HAVE A DIRECT ATTACHMENT TO TRAPEZE CHANNEL SUPPORT MEMBER +/- 50 LBS +/- 50 LBS MAX
