The existing steel member surfaces are ground smooth and square prior to field welding. Flange bevels for column splices are turned outward as detailed. Web thicknesses greater than three-eighths inch and less than three-eighths inch require specific weld preparation and joint profiles. Full penetration welds join the structural steel sections.

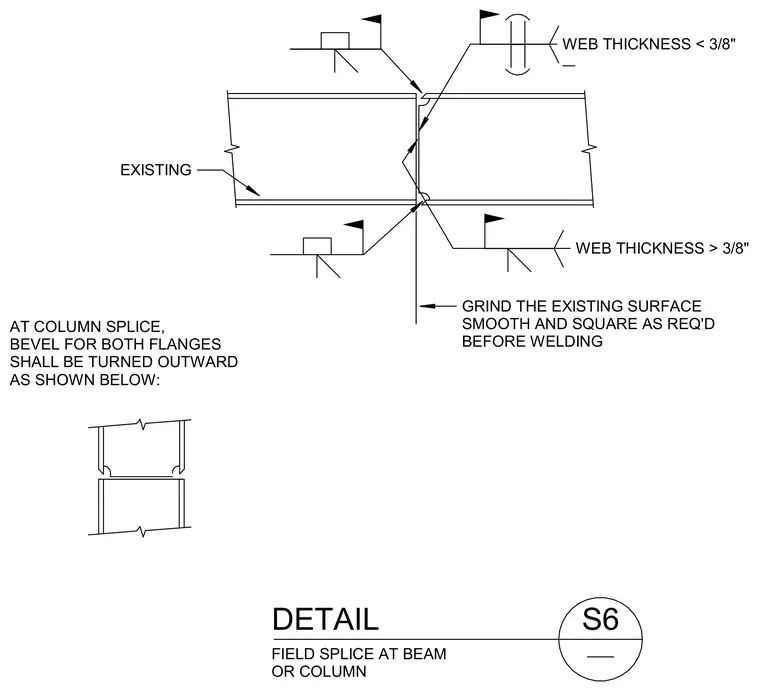

AT COLUMN SPLICE, BEVEL FOR BOTH FLANGES SHALL BE TURNED OUTWARD AS SHOWN BELOW: EXISTING GRIND THE EXISTING SURFACE SMOOTH AND SQUARE AS REQ'D BEFORE WELDING WEB THICKNESS > 3/8" WEB THICKNESS < 3/8" DETAIL S6 FIELD SPLICE AT BEAM OR COLUMN
