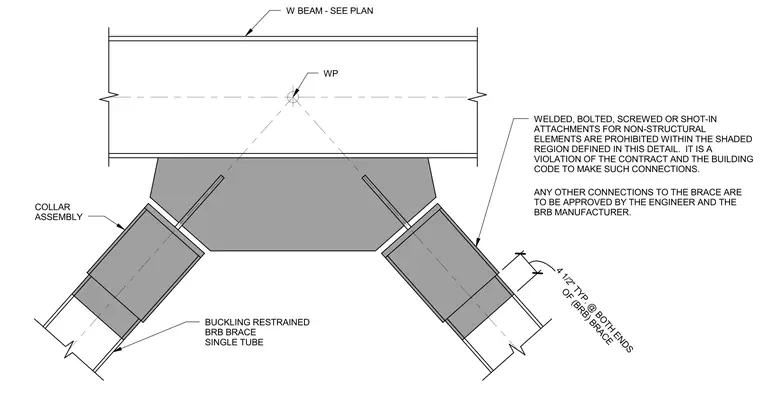

A buckling restrained brace single tube collar assembly connects below a wide flange beam sized per plan. The connection centers on a work point with diagonal brace axes intersecting at the node. A shaded restriction zone indicates areas where welded, bolted, screwed, or shot-in attachments for non-structural elements are strictly prohibited by building code. Any alternative connections to the brace require explicit approval from the engineer of record and the buckling restrained brace manufacturer. A typical four and one-half inch dimension is maintained at both ends of the buckling restrained brace assembly.
BUCKLING RESTRAINED BRB BRACE SINGLE TUBE COLLAR ASSEMBLY OF (BRB) BRACE 4 1/2" TYP. @ BOTH ENDS W BEAM - SEE PLAN WP WELDED, BOLTED, SCREWED OR SHOT-IN ATTACHMENTS FOR NON-STRUCTURAL ELEMENTS ARE PROHIBITED WITHIN THE SHADED REGION DEFINED IN THIS DETAIL. IT IS A VIOLATION OF THE CONTRACT AND THE BUILDING CODE TO MAKE SUCH CONNECTIONS. ANY OTHER CONNECTIONS TO THE BRACE ARE TO BE APPROVED BY THE ENGINEER AND THE BRB MANUFACTURER.
