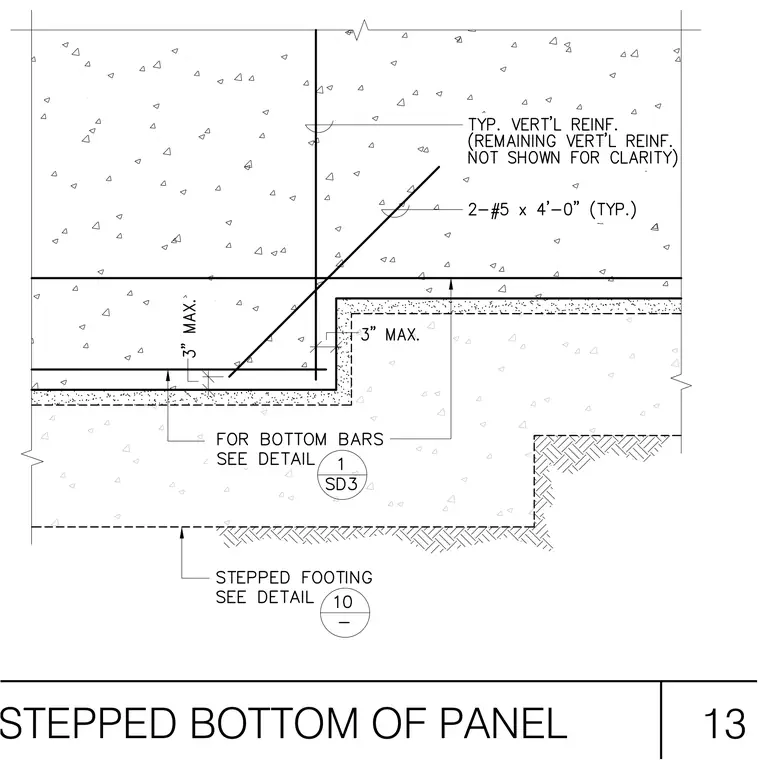

A stepped bottom condition for a concrete wall panel bearing over a stepped footing. Typical vertical reinforcement is supplemented with two number 5 bars by 4 feet 0 inches long typically, with a maximum 3 inch offset dimension. Bottom bar placement is referenced to Detail 1 on sheet SD3, and the stepped footing transition is referenced to Detail 10.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
