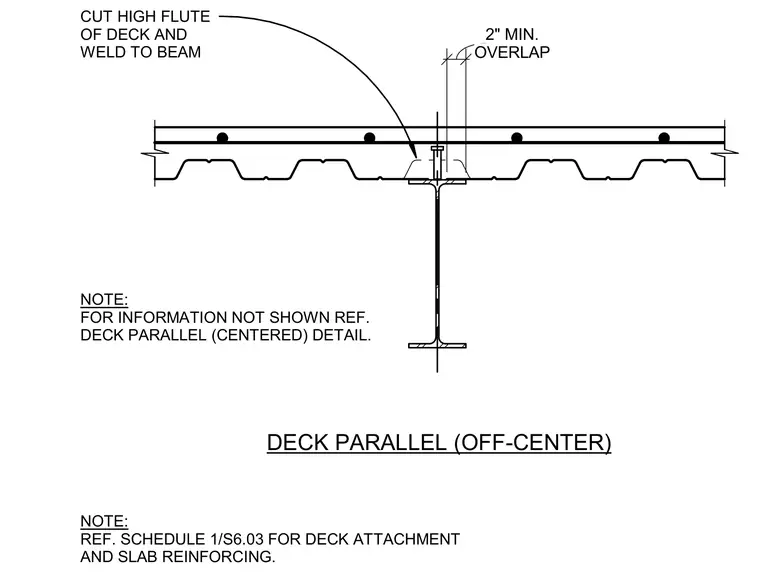

Metal floor deck runs parallel and off-center to a supporting steel beam with a minimum two-inch overlap. The high flute of the deck is cut out and welded directly to the top flange of the beam. Deck attachment and slab reinforcing are detailed per schedule on sheet 1/S6.03.
CUT HIGH FLUTE OF DECK AND WELD TO BEAM OVERLAP 2" MIN. DECK PARALLEL (OFF-CENTER) NOTE: FOR INFORMATION NOT SHOWN REF. DECK PARALLEL (CENTERED) DETAIL. NOTE: REF. SCHEDULE 1/S6.03 FOR DECK ATTACHMENT AND SLAB REINFORCING.
