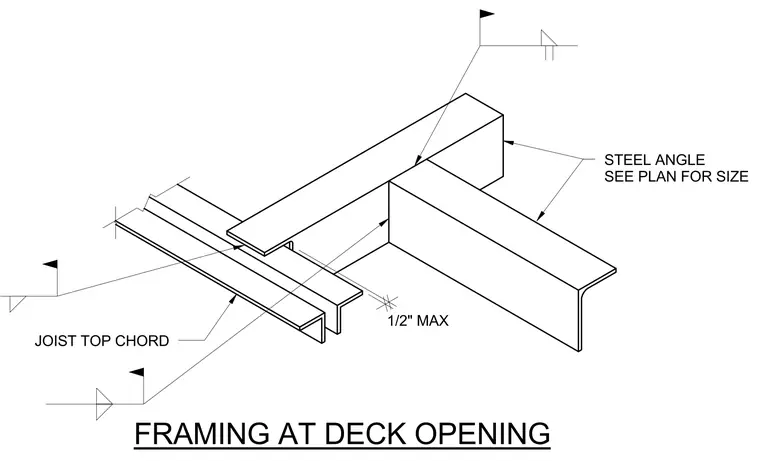

Steel angles sized per plan frame around an opening in a floor or roof deck, interfacing with adjacent open-web joist top chords. A maximum clearance of one-half inch is maintained between the framing members. Field welds secure the steel angle framing members to the supporting structure.
