A roof truss connects to a support member per plan with a half-inch bent plate welded with three-sixteenth-inch fillet welds on three-and-a-half-inch segments. The connection utilizes one three-quarter-inch diameter through bolt installed finger tight with damaged threads on the last two threads. Vertical legs feature a six-inch long slot to center the bolt in the hole. The assembly supports roof decking and framing members sized per plan.

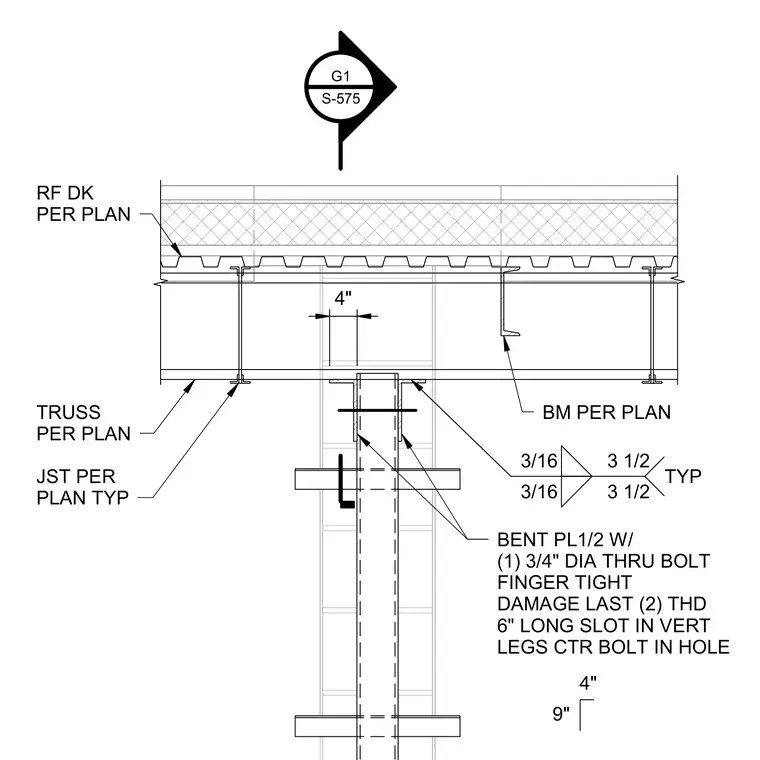

JST PER PLAN TYP RF DK PER PLAN 3/16 3 1/2 3/16 3 1/2 TYP G1 S-575 BENT PL1/2 W/ (1) 3/4" DIA THRU BOLT FINGER TIGHT DAMAGE LAST (2) THD 6" LONG SLOT IN VERT LEGS CTR BOLT IN HOLE 4" TRUSS PER PLAN BM PER PLAN 4" 9"
