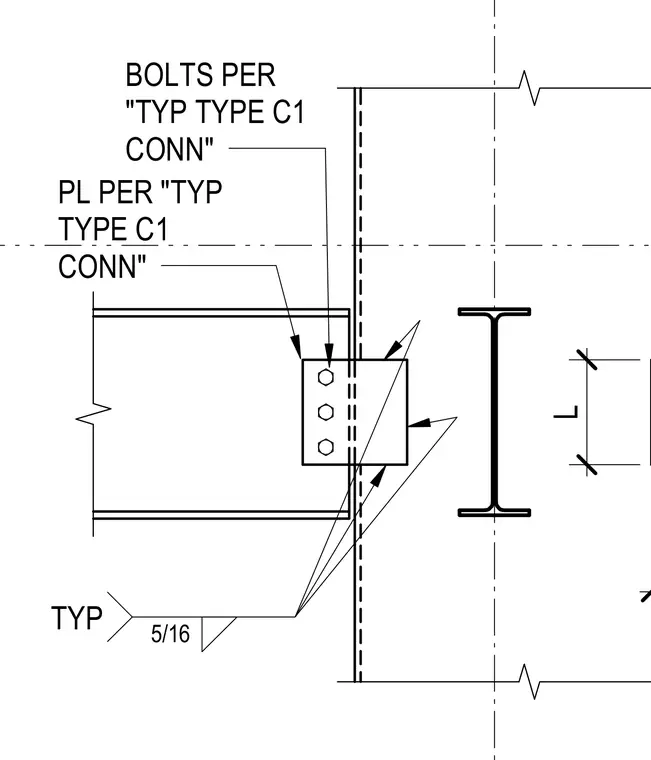

A standard Type C1 connection frames a steel beam to a wide-flange column flange using a shear tab plate. The connecting plate is welded to the column face with typical 5/16-inch fillet welds. The supported beam web fastens to the plate with three bolts sized according to standard connection schedules. Dimension lines indicate standard spacing and height requirements for the connection geometry.
