Wood structural panel diaphragms are fastened with nails spaced per schedule along panel boundaries and joints over framing members. Plywood panels maintain a one-sixteenth-inch gap at joints and bear on three-inch or four-inch framing members. Boundary nailing follows specific edge distances with blind nailing or edge nailing per schedule.

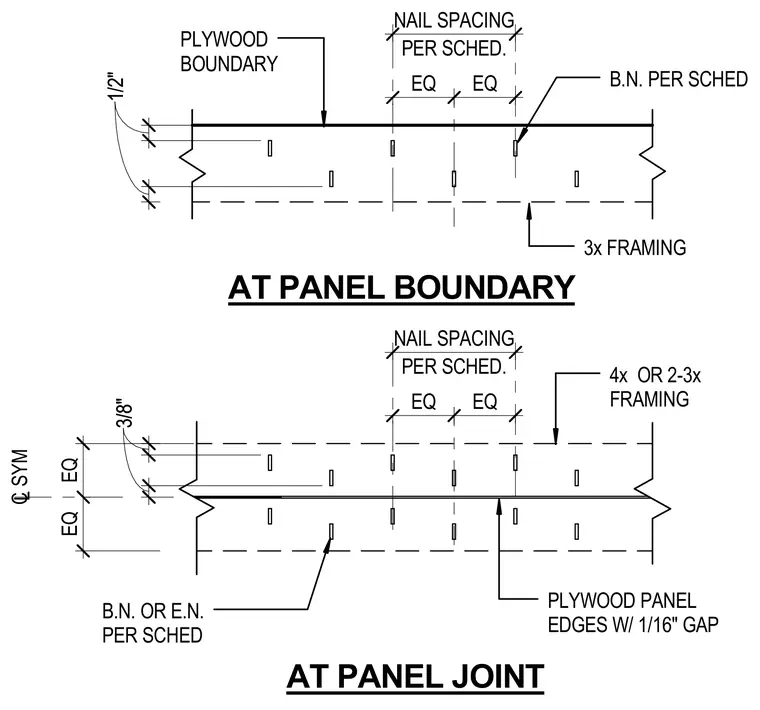

EQ EQ PER SCHED. NAIL SPACING L SYM C 3/8" 3/8" PLYWOOD PANEL EDGES W/ 1/16" GAP 4x OR 2-3x FRAMING EQ EQ EQ EQ PER SCHED. NAIL SPACING 1/2" PLYWOOD BOUNDARY 3x FRAMING 1/2" AT PANEL BOUNDARY AT PANEL JOINT B.N. OR E.N. PER SCHED B.N. PER SCHED
