Structural · S-RVAQD

18" x 24" Concrete Pilaster Section

Materials

Concrete

Elements

Columns Walls Anchors / Embeds Reinforcing

Connections

Rebar Splice / Development

About this detail

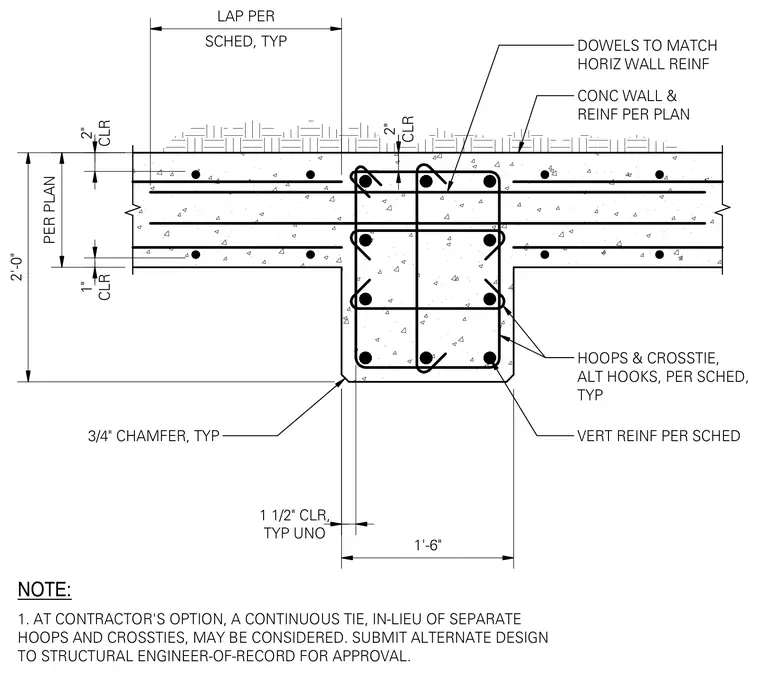

An eighteen by twenty-four inch concrete pilaster integrates with a concrete wall and its associated reinforcement sized per plan. Vertical reinforcement and horizontal wall reinforcement are detailed with typical laps per schedule and maintain a two-inch clearance where specified. Hoops and crossties feature alternating hooks at the typical spacing, while a continuous tie is permitted at the contractor's option subject to approval by the structural engineer of record. Exterior corners of the pilaster include three-quarter-inch chamfers and one-and-a-half-inch clearances unless noted otherwise.
