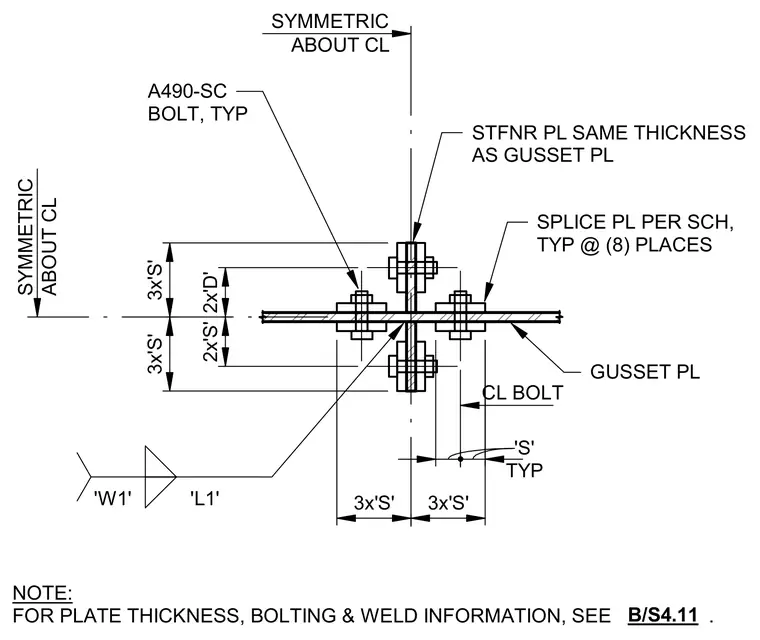

This structural steel connection features a central gusset plate joined with splice plates located at eight typical locations. Stiffener plates match the thickness of the gusset plate and are symmetrically arranged about the centerline. ASTM A490 slip-critical bolts fasten the assembly at specified spacings. Plate thicknesses, additional bolting requirements, and weld sizes are detailed per the project schedule.
A490-SC BOLT, TYP STFNR PL SAME THICKNESS AS GUSSET PL SPLICE PL PER SCH, TYP @ (8) PLACES GUSSET PL 2x'S' 2x'D' 3x'S' 3x'S' TYP 'S' 3x'S' 3x'S' SYMMETRIC ABOUT CL SYMMETRIC ABOUT CL CL BOLT 'W1' 'L1' NOTE: FOR PLATE THICKNESS, BOLTING & WELD INFORMATION, SEE . B/S4.11
