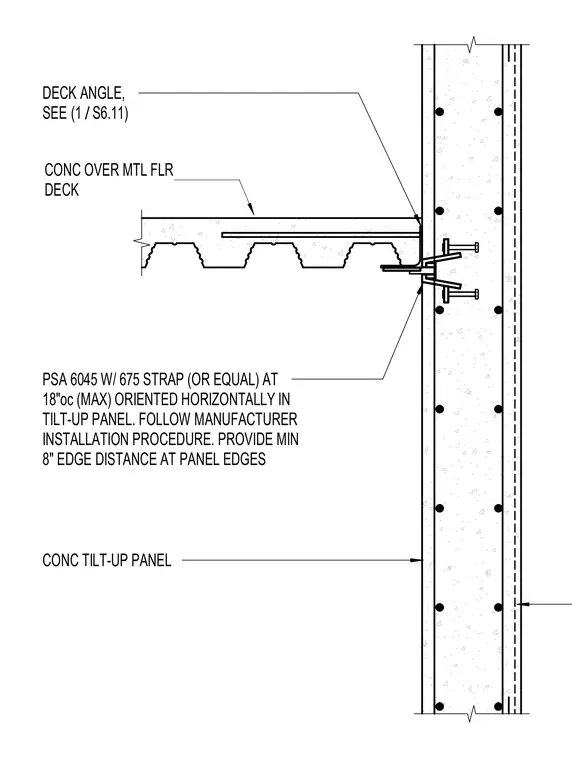

A concrete tilt-up wall panel connects to a concrete-filled metal floor deck using a PSA 6045 with 675 strap or equivalent embedded horizontally in the tilt-up panel. The strap assembly is spaced at a maximum of eighteen inches on center. A deck angle connects the metal floor deck to the panel per adjacent detail references. A minimum eight-inch edge distance is maintained at all panel edges.
CONC OVER MTL FLR DECK CONC TILT-UP PANEL DECK ANGLE, SEE / (1 S6.11) PSA 6045 W/ 675 STRAP (OR EQUAL) AT 18"oc (MAX) ORIENTED HORIZONTALLY IN TILT-UP PANEL. FOLLOW MANUFACTURER INSTALLATION PROCEDURE. PROVIDE MIN 8" EDGE DISTANCE AT PANEL EDGES
