Steel Deck Bearing Angle and Column Bracing Details

Materials

Steel Glass / Glazing

Elements

Columns Beams Decks Bracing

Connections

HSS Connection Bracing Connection

About this detail

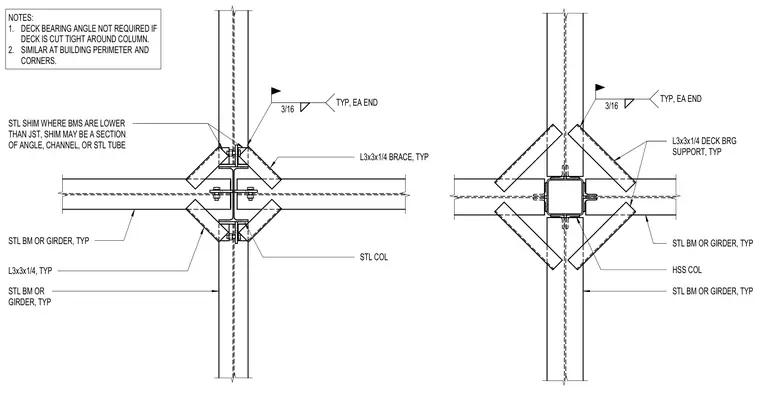

Steel beams or girders connect to steel wide-flange and hollow structural section columns with typical L3x3x1/4 diagonal braces welded at each end using 3/16 fillet welds. Steel shims formed from sections of angle, channel, or steel tube are used where beams are lower than joists. A deck bearing support angle of size L3x3x1/4 is included, though the deck bearing angle is omitted if the deck is cut tight around the column. This condition applies similarly at building perimeters and corners.
