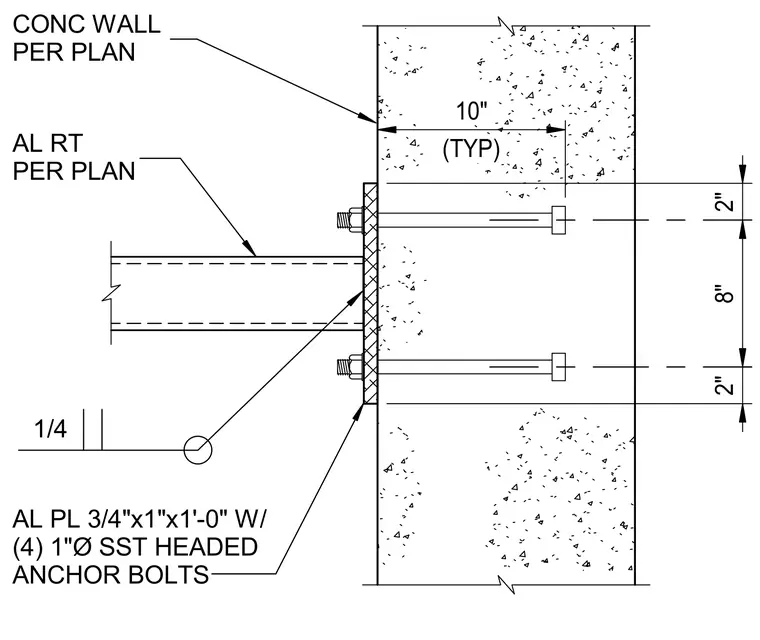

An aluminum rail is welded to a three-quarter-inch by one-inch by one-foot-zero-inch aluminum plate using a quarter-inch fillet weld. The plate is secured to a concrete wall sized per plan using four one-inch diameter stainless steel headed anchor bolts. The anchor bolts are spaced vertically with an eight-inch span and two-inch edge distances typical.
AL RT PER PLAN 1/4 AL PL 3/4"x1"x1'-0" W/ (4) 1"Ø SST HEADED ANCHOR BOLTS CONC WALL PER PLAN 2" 8" 2" (TYP) 10"
