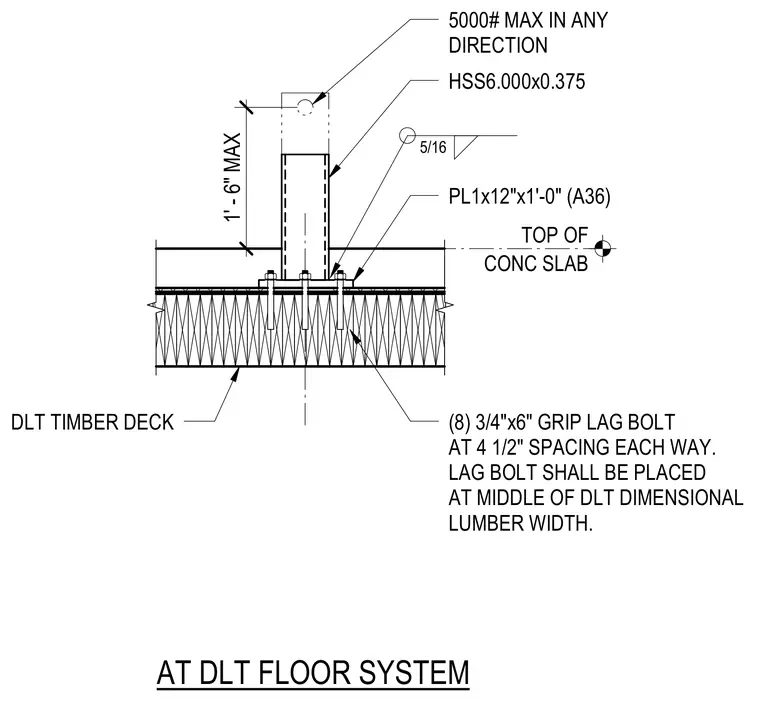

An HSS6.000x0.375 hollow structural section column is anchored to a dowel laminated timber floor system using an A36 steel base plate measuring 1 inch by 12 inches by 1 foot 0 inches. The base plate is secured to the dowel laminated timber deck with eight three-quarter-inch by 6-inch grip lag bolts spaced at 4 and a half inches each way. The lag bolts are positioned at the middle of the dowel laminated timber dimensional lumber width. A five-sixteenths-inch fillet weld connects the HSS column to the base plate. The top of the concrete slab is referenced, and the assembly accommodates a maximum load of 5000 pounds in any direction within a 1-foot 6-inch maximum height.
AT DLT FLOOR SYSTEM (8) 3/4"x6" GRIP LAG BOLT AT 4 1/2" SPACING EACH WAY. LAG BOLT SHALL BE PLACED AT MIDDLE OF DLT DIMENSIONAL LUMBER WIDTH. PL1x12"x1'-0" (A36) DLT TIMBER DECK HSS6.000x0.375 CONC SLAB TOP OF 5000# MAX IN ANY DIRECTION 1' - 6" MAX 5/16
