Structural · S-RTA4M

Steel Beam to Column Connection Detail

Materials

Elements

Columns Beams Floors / Slabs Decks Connections / Plates

About this detail

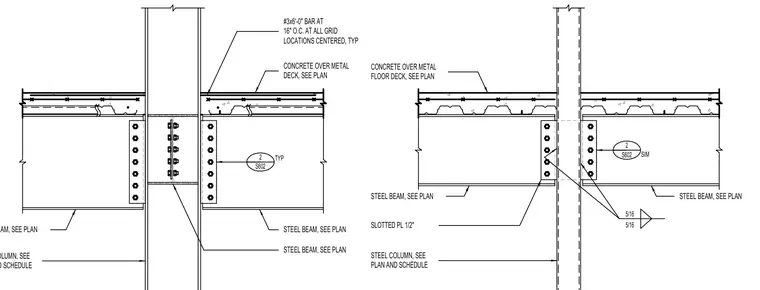

Steel beams frame into steel columns using bolted shear connections with a one-half-inch slotted plate and five-sixteenth-inch fillet welds. A concrete topping over metal floor deck spans between the beams, reinforced with number three bars at sixteen inches on center centered at grid locations. Steel beam and column sizes are sized per plan and schedule.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
