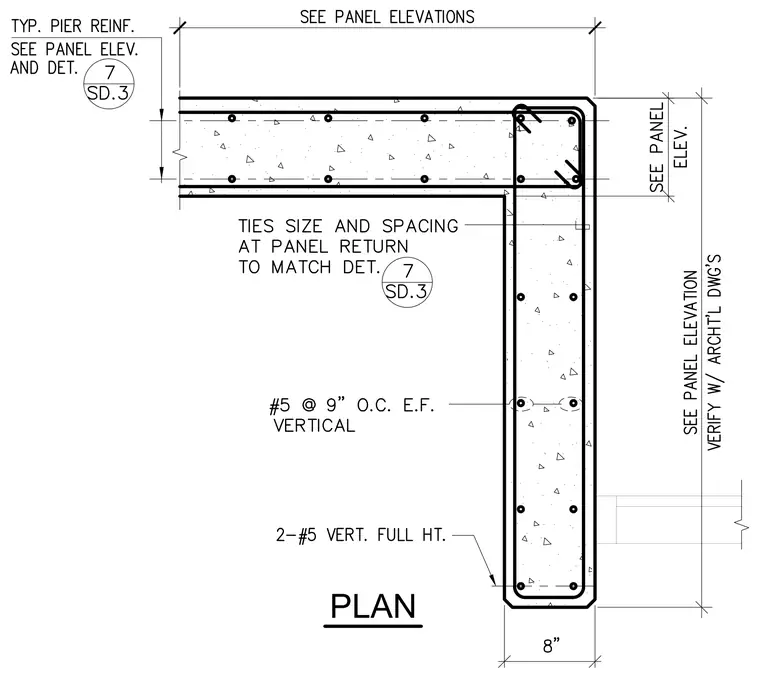

This structural plan detail shows an eight-inch concrete wall panel corner intersection reinforced with number five vertical bars at nine inches on center each face and two number five vertical bars running full height. The corner tie size and spacing match detail seven on sheet SD.3, with typical pier reinforcement sized per the panel elevations and details. Dimensions and additional panel elevations are verified with architectural drawings.
