The framing assembly consists of a structural steel column intersecting with framing beams and collector members at the column web and flange. Continuity plates are provided as required per the collector detail. Stiffener plates are installed at the connection level as dictated by the collector requirements. Bolted collector connections are placed on each side of the column. Member sizes for the frame column, beam, and collector connections are sized per plan and frame elevation.

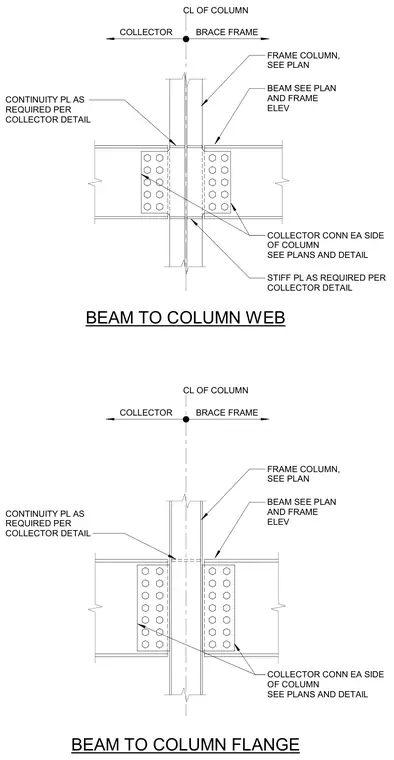

FRAME COLUMN, SEE PLAN BEAM SEE PLAN AND FRAME ELEV CONTINUITY PL AS REQUIRED PER COLLECTOR DETAIL CL OF COLUMN . COLLECTOR BRACE FRAME CL OF COLUMN . COLLECTOR BRACE FRAME COLLECTOR CONN EA SIDE OF COLUMN SEE PLANS AND DETAIL STIFF PL AS REQUIRED PER COLLECTOR DETAIL BEAM TO COLUMN WEB BEAM TO COLUMN FLANGE FRAME COLUMN, SEE PLAN BEAM SEE PLAN AND FRAME ELEV CONTINUITY PL AS REQUIRED PER COLLECTOR DETAIL COLLECTOR CONN EA SIDE OF COLUMN SEE PLANS AND DETAIL
